Cable Innovations 2023
APPLCATION
Any drop used in place of ground block.FEATURES
High speed solid state surge protection, for reliability and durabilityPROTECT
Set top boxes Modems Subscriber Electronics Drop amps. Drop passives
Systems connect several drop components with
cable on the side of the subscriber’s home. The
standard collection of units is a ground block or
surge suppressor, a splitter or directional couple
followed by a high pass filter or a window filter.
These units are interconnected with coaxial
cables.
The DIU replaces these collections of individual
components with a single unit.
DIU-15D series
Digital Interface Unit
770-962-5146
Simplify drop installs • Reduce Inventory • Protect Drop

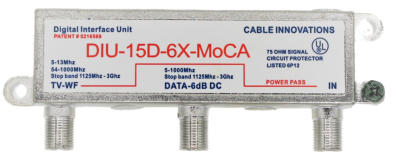

DIU-15D-6X-MOCA was custom designed for a
large MSO, it contains the following:
•
Solid State Surge Suppression
•
5-13 Notch Filter
•
MOCA Filter
•
DC-6
•
Power Passing
Handles 500 Amps.
Dual direction protects to and from the house
Power Passing (2 amps)
